Description
1. Real USB connect,support hot-plug.No USB drivers reqired.
2. Support automatically contour cut,cutter can search and deal with mark points automatically by camera.High precision and smart.
3. Multi interface available: USB cable,U disk,and wifi(option)
4. Remote and one key update:Independent firmware,user can update newest firmware very easy.
5. 4.3" touch screen,high resolution,high definition
6. APP interface: User can control cutter by phone app
7. High-speed 32bit M4 arithmetic microprocessor.8M merrory.Stable and high precision cutter,smooth and quiet.
8. High precision control system and mechanical design.Use high preicison steel axes,and independent control system.
9. Ultra force,160 setting adjustable.Capable for thick materials.
10. LED light bar,user can change color freely.
11. Multi languages are available.
Specification

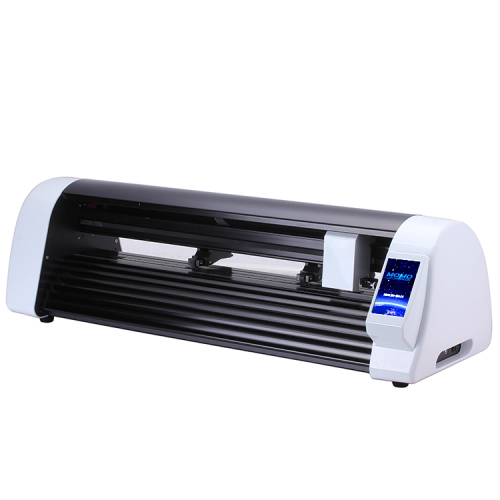

| Model | MM-CAH48 （48inch basic version PRO vinyl cutting） |
| Acceptable media width | 1350mm |
| Max cutting width | 1260mm |
| 48Inch | |
| Cutting head | Single |
| Camera | Support |
| Contour cutting function | Fast ,automatically and high precision contour cut by using camera. |
| Operation | 4.3" TFT LCD Large touch screen |
| Interface | HD large screen full-color APP information function display |
| Connector | USB cable,USB flash drive |
| Contour cutting calibration | Easy use and high precision calibrate |
| Mainboard | 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update. |
| location mode | Bound system. set origin freely |
| Driver | Digital DC stepper motor,microstep driving |
| Command | HP-GL, DMPL |
| Max moving speed | 960mm/s |
| Max cutting speed | 750mm/s |
| Max cutting thickness | 1mm |
| Force | Single head: 50g~2000g ( 160 setting adjustable ) |
| Cutting precision | < 0.01mm |
| Repeat precision | 0.082mm |
| Power supply | AC100~240V/50Hz~60Hz |
| working environment | +5℃~ +45℃，relative humidity 30%~70% |
| Support type | Desk type |
| Body color | White/black/red（optional） |
| Bracket | stand |
| Size | 1600 x 375 x 370mm |
| Packing G/N weight | 25.2 / 21kg |
| Vinyl cutter Software | SignMaster Cut / Flexi / Signcut / CorelDRAW driver |
| Operation system | Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10 |
| MAC OSX10.2.8 or above |
