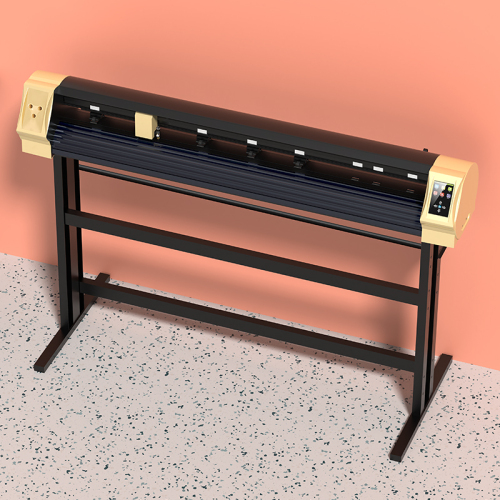

48“ Servo plotter machine with contour cutting

48" servo motor plotter machine build in ccd sensor,it offers new and smart automatic functions that are ideal for working with any colors of material and mark.It is real 100% automatically plotter cutter.
Product parameters
Motor:: Servo motor
Acceptable media width: 1300mm
Max cutting width:: 1200mm
Max cutting speed:: 1000mm/s
Positioning mode:: CCD Sensor positioning
Force:: 0-1000g (digital adjustment)
Work Nosie:: 《50dB
Description Specification Application VIDEO
1, High-precision digital Servo DC:High-precision output,lower nosie less than 50dB at work.
2, Multi-output interfaces:RS-232C/USB2.0/SD Card(1-8G)/U Disk
3, True USB2.0 high speed data transmission:No need to install USB drivers,Support USB virtual Interface Converter.
4, Higher Cutting force,1000g pressure suits for strong strength reflective film and various coated materials within 1mm.
5, Intelligent&Automatic contour cutting function: Automatically scan in a row,and make automatic correction and calibration to the 4 marks on Ink-jet printer output images.Solve the deformation of printed or coated,so as to realize high precision cutting.

Model MM-HSQ1200  (48inch Servo motor Cutter Plotter )
Acceptable media width 1300mm
Max cutting width 1200mm
48 Inch
Cutting head Single
CCD Sensor Support
Contour cutting function Fast ,automatically and high precision contour cut by using ccd sensor.
Operation LCD
Connector RS-232C/USB2.0/SD Card(1-8G)/U Disk
Contour cutting calibration Easy use and high precision calibrate
Mainboard 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update.
location mode Bound system. set origin freely
Driver Servo motor
Cutting Mode Intelligent & Automatic contour cutting
Max moving speed 1000mm/s
Max cutting speed 800mm/s
Max cutting thickness 1mm
Force Single head: 0g~1000g  ( adjustable )
Cutting precision < 0.01mm
Repeat precision 0.082mm
Power supply AC100~240V/50Hz~60Hz
working environment +5℃~ +45℃,relative humidity 30%~70%
Support type stand
Body color black/blue(optional)
Bracket Support
Size 1565*345*385mm
Packing G/N weight 35kg
Vinyl cutter Software SignMaster
Operation system Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10
MAC OSX10.2.8 or above
