Clothing design

MOMO Vinyl cutter machine used in the field of garment making

MOMO cutting plotter applications have been applied to billboard advertisements, screen printing, tinted glass, paper models, car spray painting, tattoo stickers, and 3C applications. Now, the MoMo cutting plotters can be also used with the Stone Stencil
Details

General;cutting;plotter;applications have been applied to billboard advertisements, screen printing, tinted glass, paper models, car spray painting, tattoo stickers, and 3C applications. Now, the MOMO cutting plotters can be also used with the Stone Stencil Rhinestone heat transfer system developed by Digital Art Solutions ,and can be utilized to decorate apparel, jeans, hats and handbags with rhinestones, nailheads ,rhinestuds and Personalized Rhinestone Apparel/T-shirt.

MOMO <a  data-cke-saved-href=http://cuttingplotter.cc/D-Serials-vinyl-cuuter.html href=http://cuttingplotter.cc/D-Serials-vinyl-cuuter.html target='_blank'>vinyl cutter</a> H48 support camera

Rhinestone Application through MOMO Cutter plotter software

The total solution MOMO provides- Rhinestone Transfer System including MOMO Vinyl cutter software and a professional cutting plotter from MOMO helps you to swiftly create Rhinestone templates. In this video, you will learn the shortcut to transform your images into fun and inviting objects with your own twist. You will also be demonstrated the creation process of versatile heat transfer applications and high value-added customized objects.

Open MOMO Vinyl cutter software and go to File and import your object. (It is advised that the image is edited in graphic design software before being input into StoneCut for template creation).

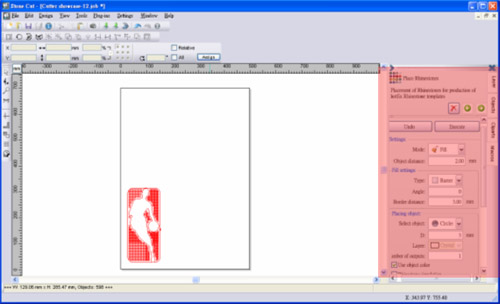

Set rhinestone parameters in Place Rhinestones under Macros (you can feel free to optimize rhinestone parameters according to the shape of the image or the dimension of rhinestones).

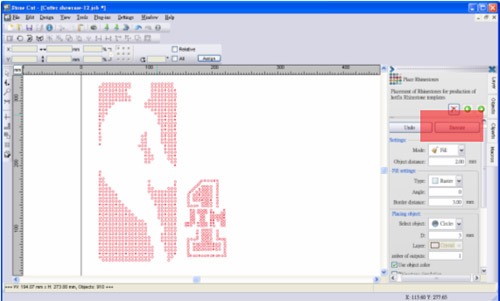

Select Execute when parameter setting is complete.

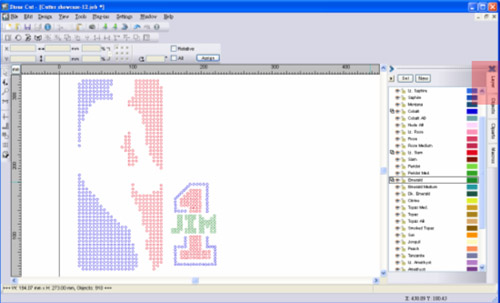

Set or change the colors of your rhinestones in Layer.

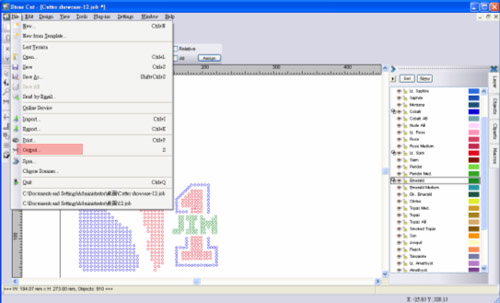

Go to File and select OK under Output after loading Stone Stencil.

Set cutting parameters before outputting the object to MOMO cutting plotter

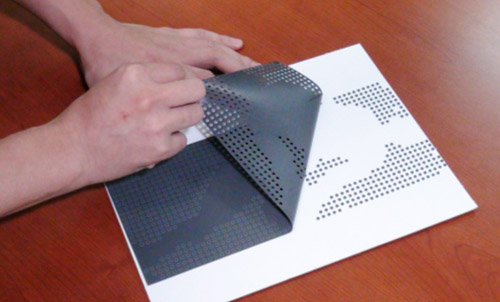

Attach the cut Stone Stencil on a piece of white board and weed the material.

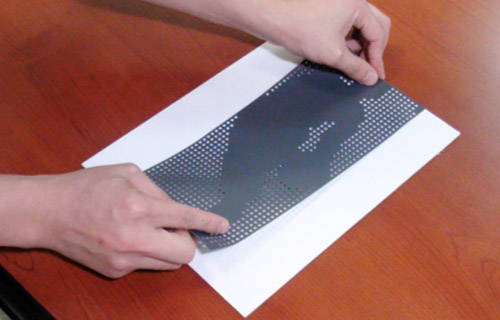

Attach the weeded material on the other side of the white board.

Fill the holes in the template with different colors of rhinestones and apply the brush to complete.

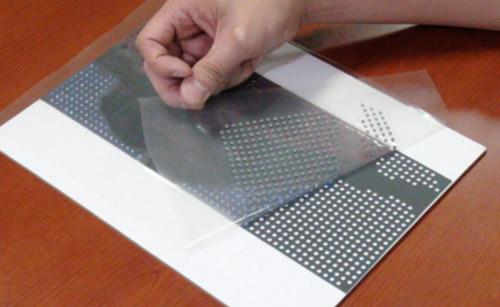

Apply a piece of transfer film to acquire a full rhinestone pattern.

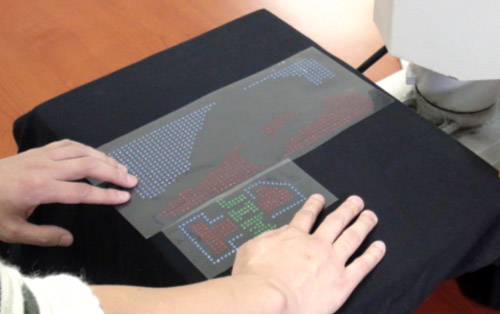

Place a garment on the heat press machine and the transfer film on it then heat press the transfer film for 12 seconds at 150 degrees.

MOMO Vinyl cutter software can also make Chinese character application happen!

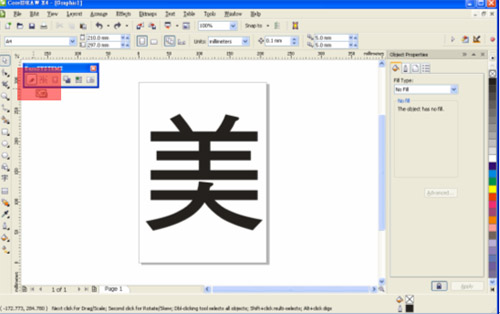

Open CorelDraw and input a Chinese character then select the "Cut" tool in the EuroSYSTEMS window to automatically start Stone Cut and import the character.

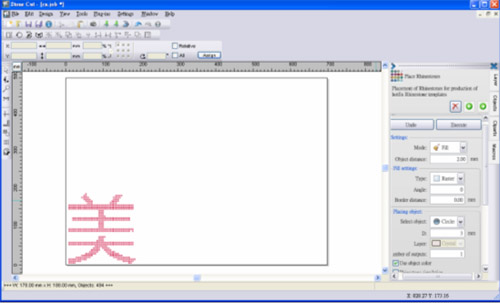

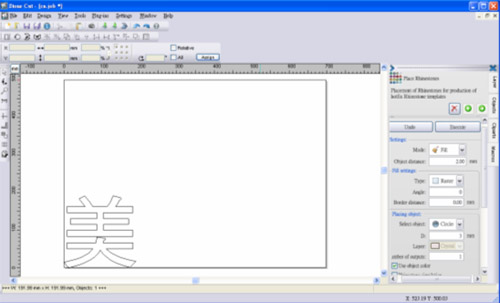

Set rhinestone parameters in Place Rhinestones under Macros (again, feel free to optimize rhinestone parameters according to the shape of the image or the dimension of rhinestones).

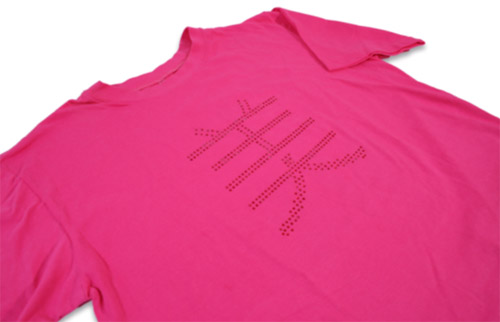

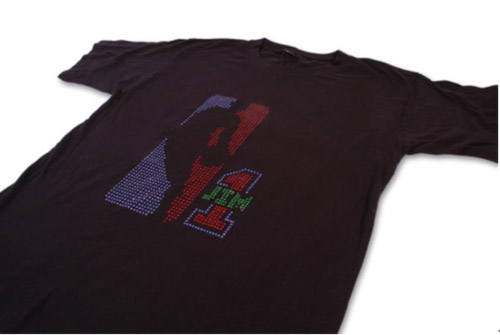

Completed application sample.
